OSTEK 20W LED Emergency Driver – 100-247V AC / 175V DC Rechargeable Backup Battery, UL Listed, 5-Year Warranty, 90-Min Emergency Power Supply for Panel & Linear Lights (5-Pack)
Product details
| Management number | 218580170 | Release Date | 2026/05/03 | List Price | US$148.00 | Model Number | 218580170 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This 20W LED Emergency Backup Battery is suitable for the following two kinds of LED fixtures:If the LED lamp's input power is higher than the emergency output power (20W), then these LED fixtures must have 0-10V or 1-10V dimmable functionality, with a maximum power of 150W. Examples include LED panels, LED troffers, and LED linear shop lights.If the LED lamp's input power is less than the emergency output power (20W), then these LED fixtures do not need to have dimmable functionality. Examples include LED tubes and downlights.Specifications:Housing Color: White colorInput Voltage: 100-347Vac 50/60HzInput Current: ≤100mAInput Power: 8W maxOutput Voltage: ≤175VDCOutput Power: 20WDischarging Time: ≥90 minutesCharging Time: ≥24 hoursConduit length: 17.7 inches (450mm)Battery: Li-ion BatteryAmbient temperature: 0℃ to +50℃ (32℉ to 122℉)Dimensions: 12.91 x 1.9 x 0.94 inches
- 💪 【Durable & Reliable Performance】: Our 20W emergency backup driver delivers approximately 90 minutes of emergency lighting after 24 hours of charging, with a lifespan of up to 12,000 cycles. Constructed with a robust aluminum lamp body and fire-retardant design, it ensures safe, long-lasting operation during power outages.
- 🛡️ 【UL-Certified Safety Assurance】: This emergency LED driver is UL listed, meeting rigorous safety standards for commercial and industrial use. It guarantees top-notch quality, reliable performance, and superior interference resistance for peace of mind.
- 🔅 【Versatile 0-10V Dimmable Functionality】: Designed for LED systems with 0-10V dimming, this 20W driver supports a range of fixtures—from LED panels and lamp troughs to downlights and LED tubes (for inputs under 20W). Enjoy precise brightness control to tailor illumination to your needs.
- 🌐 【Wide Application Range】: Supporting 100-347V AC input and delivering an output voltage of ≤175VDC, this emergency LED driver is ideal for public buildings such as hospitals, warehouses, factories, schools, and shopping malls. Its flexible design makes it perfect for various commercial and industrial applications.
- 💌 【Warranty & Support】: This emergency LED driver comes with a 5-year warranty covering any defects or quality control issues. Our dedicated support team is ready to assist with technical questions or installation guidance, ensuring lasting reliability and customer satisfaction.
| UPC | 768599926810 |
|---|---|
| Color | White |
| Voltage | 100347 Volts |
| Wattage | 20 watts |
| Room Type | Storage Room |
| Brand Name | OSTEK |
| Brightness | 251 lumen |
| Efficiency | High efficiency |
| Style Name | Classic |
| Unit Count | 5.0 Count |
| Light Color | White |
| Shade Color | White |
| Fixture Type | Non Removable |
| Light Source | LED |
| Manufacturer | OSTEK |
| Model Number | 768599926810 |
| Power Source | Corded Electric |
| Material Type | Aluminum |
| Mounting Type | Wall Mount |
| Lighting Method | LED |
| Number of Items | 5 |
| Required Assembly | No |
| Specification Met | RoHS, UL |
| Light Fixture Form | Wall |

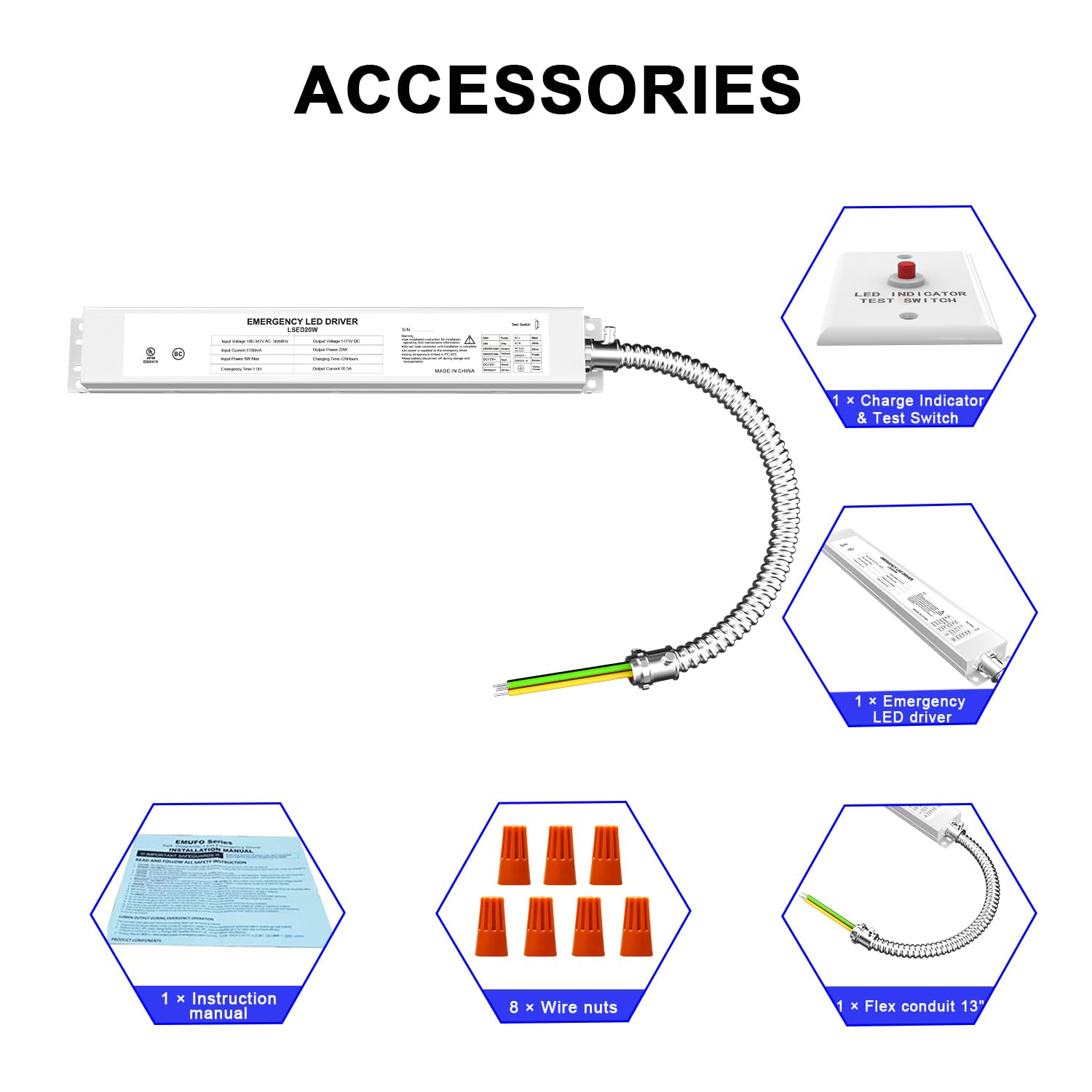

| Included Components | test swich |
| Indoor Outdoor Usage | Indoor |
| Light Output Maximum | 251 Lumens |
| Water Resistance Level | Not Water Resistant |
| Number of Light Sources | 1 |
| Manufacturer Part Number | LSED20W |
| Item Dimensions L x W x H | 12.91"L x 1.9"W x 0.94"H |
| Specific Uses For Product | Hotel, Indoor, Office, Shop |
| Manufacturer Warranty Description | 5 years warranty. |
